Locking Guard Switch TLS-1 24V AC/DC 3N/C+2N/O

(440G-T27121)
£231.04
1 In stock
SKU
5106354

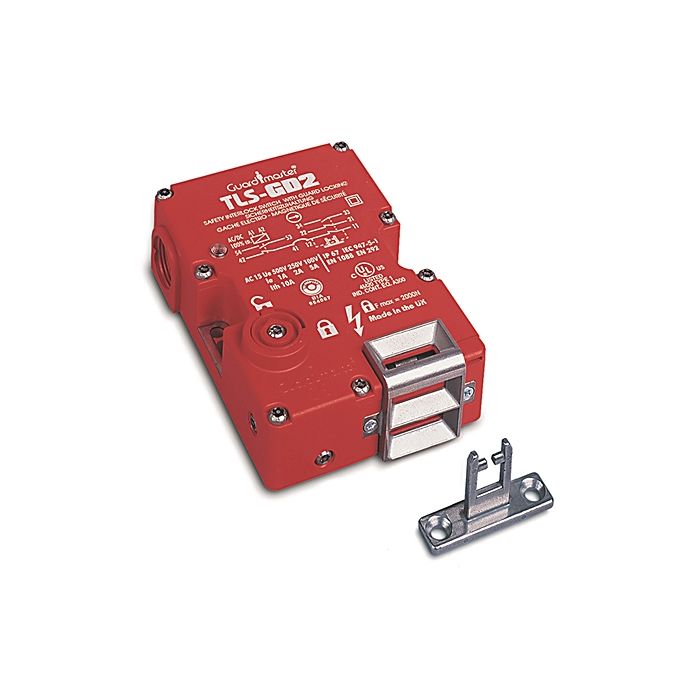

The TLS-GD2 is a positive mode, tongue operated machine guard
locking interlock switch. It locks the guard closed until the machine power is isolated and ensures that the machine remains isolated whilst the guard is open. In operation (machine running), the TLS-GD2 remains in the locked position until the internal solenoid is energised. The optional key release allows the TLS-GD2 locking mechanism to be quickly overridden in an emergency, Note: the key should only be available to
authorised personnel. The head rotates 180 to give four actuator entry points. A stainless steel actuator guide is fitted, to protect the unit from actuator damage due to poor alignment or guard wear. The TLS-GD2 is
available with five sets of contacts in different configurations and in three
different voltages. They are suitable for use with PLC's.
The TLS-GD2 actuator is supplied separately in three versions, standard actuator, flexible actuator and flat actuator.
TLS-1 24V AC/DC 3N/C+2N/O 3XM20
More Information
Manufacturers Part Number 440G-T27121
Safety Switch Type Solenoid Locking
Application Area General Use
Safety Switch Actuator Actuator Not Included
Contact Configuration 3N/C + 2N/O
Current Rating 10A
Connection M20
Coil or Supply Voltage 24Vac or Vdc
Housing Material ABS
Catalogue Page Catalogue pdf, prices not current.
Technical Data1 Guardmaster TLS-GD2 Data Sheet
Pack Unit EACH
Manufacturer GUARDMASTER
Price 231.04
