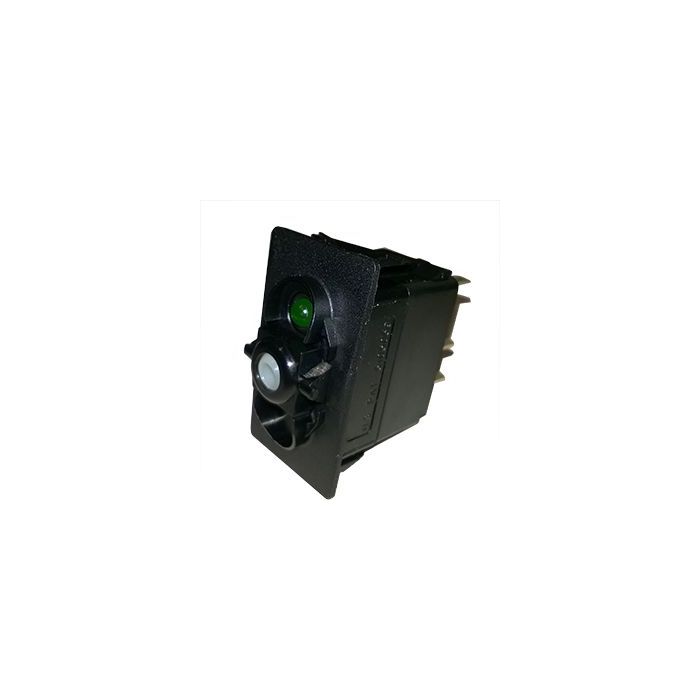

Switch Bodies Single Pole On None On One LED Green 12Vdc

A selection of switch bodies onto which switch actuators can be fitted. The models below have One Led so typically would be used in conjunction with an actuator with One Lens.

Switching function brackets () indicates momentary/sprung return Sealing.
All switches are front panel sealed a standard , an additional panel gasket VPS can also be specified.

Led position can be top or bottom, an can be wired independently of the switch or linked internally to the switch function.

Carling technologies convention for on off switches is that when the bottom of the switch is pressed the switch is off and when the top is pushed the switch contacts make and the switch is considered on. The is the opposite to uk domestic light switches .Some customers prefer the uk convention and use upside down configurations and put the actuators on the wrong way round !
