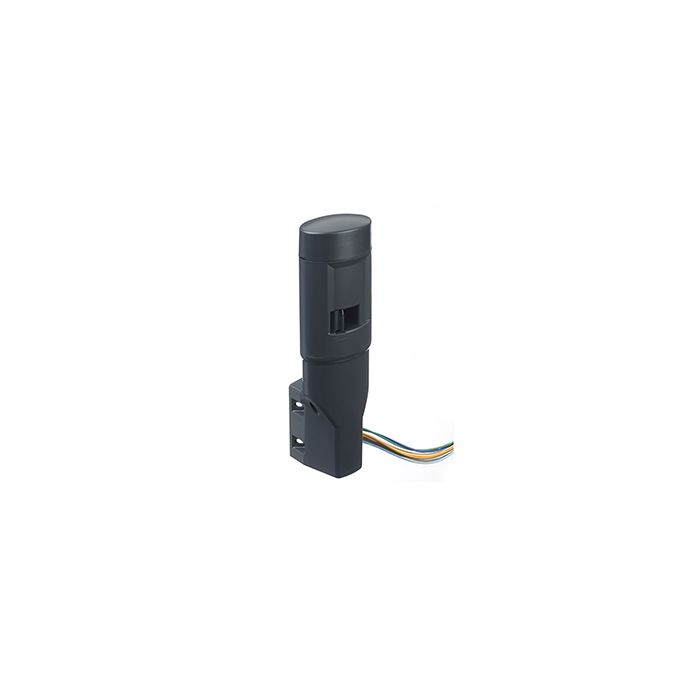

Stack Light Base, with Sounder & Flasher, Wall Mount, 24VAC/DC

Stack Light Base, with Sounder & Flasher, Wall Mount, 24VAC/DC

The sounder features 2 modes, short or long beep beep of 3.3Khz, selected by either of two input lines ,with external volume control between 70 and 90dB.

It may also be set to flash,at 1.75 Hz (105 flashes per minute) ,again controled by another input line.

The Idec Signalight LD6A  are a range of signal lights awith a modern and attractive oval design ,which are easy to see and easy to assembly.

To order a complete signal tower, you will need to order:

Signal Tower Base+Individual Light Sections+Securing Screw

Example

1 Signal Tower Base, LD6A-Type (Comes with gasket and mounting screws, connection by flying leads)

2 Individual light sections, LD9Z-6A-type:

Choose LED colour and Lens Colour, upto a maximum of 5 tiers.

e.g Red LED with Red Lens LD9Z-6ALB-R, or Green LED with Clear lens LD9Z -6ALB-GC

3 Securing screw of length appropriate to number of tiers or light sections

e.g LD6A-AC1  for 1 tiers. LD6A-AC2 for 2 tiers and so on.
