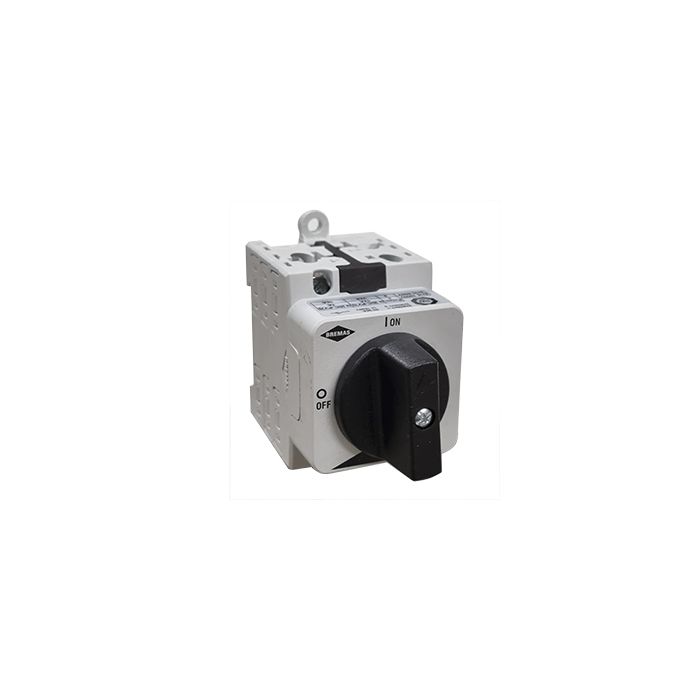

Solar PV DC Disconnect Switch 1000Vdc 12A Din Rail DDN
(DP10012-1E0AD-RND-X)
£33.80
1000Vdc Disconnect Switch -Isolator for Solar PV String Isolation.
1+1 Pole Configuration.
PV1 rated 12A at 1000Vdc or 32A at 600Vdc
Thermal Current 50A.
New generation design givng the most powerful Isolator on the market measuring only 45mm wide, allowing direct DIN Rail mounting use inside DDN enclosures.
Multiple approvals and reassurance of European design and quality from Bremas Ersce, Europes leading Isolator manufacturer with over 50 years of experience.
Solar PV DC Disconnect Switch 1000Vdc 12A 2 Pole Din Rail DDN Version Head Up Screws RND Handle 600V 32A
| Manufacturers Part Number | DP10012-1E0AD-RND-X |
|---|---|
| Contact Configuration | 1+1 ( Isolating +V and -V ) 2 Pole |
| Mounting Method | Din Rail |
| Housing Size and Style | 45mm Wide DDN |
| Current Rating | 12A |
| Switching Voltage | 1000Vdc |
| Housing Material | ABS |
| Enclosure Size | 45mm |
| Sealing | IP66 |
| Technical Data1 | Bremas Compact DC Isolator Data |
| Pack Unit | EACH |
| Manufacturer | BREMAS ERSCE |
| Price | 33.8 |
