Solar Guardian 6 MPPT 50A@1000Vdc 20A@1500Vdc with Dual Mechanical Flag

(FB150306NUA2MC)
£722.00
Out of stock
Contact Sales for Delivery
SKU
9714096
Solar Guardian 6 MPPT 50A@1000Vdc 20A@1500Vdc 309x229x179mm box

Bremas Solar Guardian with 6 PV inputs  (12 Pole)

50A at 1000Vdc

20A at 1500Vdc

Box size 309x229x179mm

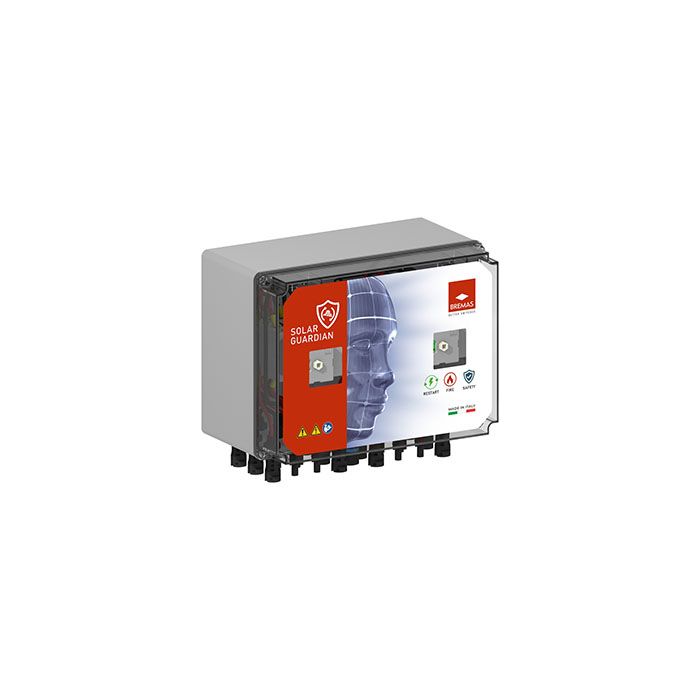

The Bremas Solar Guardian, or Solar Firefighter Switch, Is a high performace DC Isolator switch designed to cut the power from multiple Solar PV strings, in case of emergency.

Disconnects DC by manual remote control, via E Stop Button.

Disconnects DC if the mains supply has failed for more than 3 seconds.

Disconnects  DC if the temperature inside the enclosure exceeds 100C.

Auto restart

This unit uniquely features dual mechanical Indicator flags to show the status of the two internal motorized Isolators.

optional status indication via relay contacts

In development modbus output status card.





More Information
Manufacturers Part Number FB150306NUA2MC
Contact Configuration 6 PV Inputs-12 Pole
Mounting Method Enclosed
Housing Size and Style Rectangular
Current Rating 20A
Switching Voltage 1500Vdc
Housing Material ABS
Handle Type N/R
Enclosure Size 309x229x179mm
Sealing IP65
Pack Unit EACH
Manufacturer BREMAS ERSCE
