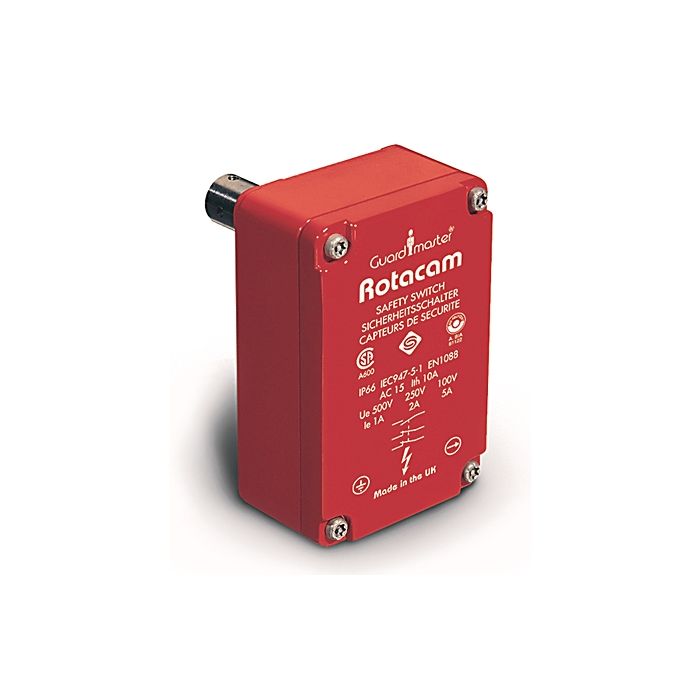

Heavy Duty Rotary Safety Switch, 'Rotacam'
(440H-R03074)
£66.36
2 In stock
SKU
5105331
The Rotacam is a robust heavy duty rotary actuated safety switch
designed to fit at the hinge point of guards. The shaft is strong enough to be utilised as, or connected to, the existing hinge pin. Switch isolates power with just 5 of door movement, adjustable cam allows switching
adjustment to 11. Available with 2 N/C safety contacts + 1N/O auxiliary
contact.
designed to fit at the hinge point of guards. The shaft is strong enough to be utilised as, or connected to, the existing hinge pin. Switch isolates power with just 5 of door movement, adjustable cam allows switching
adjustment to 11. Available with 2 N/C safety contacts + 1N/O auxiliary
contact.
ROTACAM 30 X 16 MM HOLLOW 2 N/C + 1 N/O
| Manufacturers Part Number | 440H-R03074 |
|---|---|
| Safety Switch Type | Rotary Hinge |
| Application Area | General Use |
| Safety Switch Actuator | N/R |
| Contact Configuration | 2N/C + 1N/O |
| Current Rating | 10A |
| Connection | M20 |
| Coil or Supply Voltage | N/R |
| Housing Material | Metal Diecast |
| Catalogue Page | Catalogue pdf, prices not current. |
| Technical Data1 | Rotacam Manaul |
| Pack Unit | EACH |
| Manufacturer | GUARDMASTER |
| Price | 66.36 |
