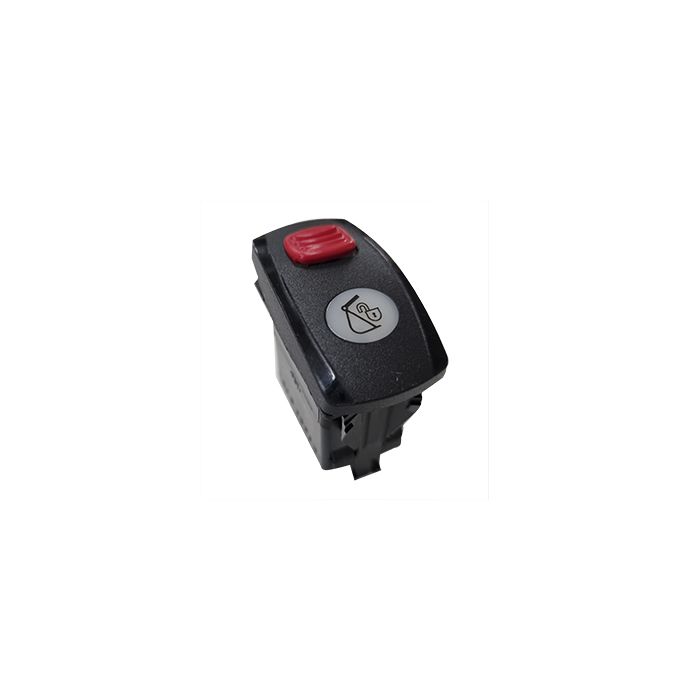

Contura V Locking Switch Single Pole On-None-Off, Red Lock Button 12vdc Red Led

(V1D2CWCB-UHDXX-1-XHA1)
£15.69
69 In stock
SKU
9143245

Contura V Locking Switch Single Pole On-None-Off, Red Lock Button, Locks UP,20A 12Vdc Rated, Red LED : LENS UP WHEN LIT: T3+ T7-

Oval Window, Bucket and Padlock Symbol
10 Term Base ,No Gasket.

Locks open circuit in up postion, top of actuator raised. Led on when when circuit made, i.e unlocked

Contura V Locking Switch Single Pole On-None-Off, Red Lock Button, Locks UP,20A 12Vdc Rated, Red LED : LENS UP WHEN LIT: T3+ T7- Oval Window, Bucket and Padlock Symbol 10 Term Base ,No Gasket.

When the bottom of the switch is depressed, the switch is in the locked position, and the contact ( pins 2 and 3 ) is open circuit.

(The manufacturer would call this locking in the up position, the top of the actuator is raised)

When the lock mechansim is activated the Top of the switch may be pushed down, and the contacts become closed circuit.

This means the attachment may then be unlocked.

If incoming feed is to pin 2, then upon switch closing ,power will be connected to pin 3, giving the opportunity to light the LED

to indictate the attchment may be released.



More Information
Manufacturers Part Number V1D2CWCB-UHDXX-1-XHA1
Rocker Switch Type Locking Switch
Rocker Switch Style V Series Contura V
Switching Function-Circuit SP ON NONE OFF
Rating Switches 20A 12Vdc
Termination Switches 10 Way Connector
Actuator Colour and Texture Black
Texture Hard
Colour Actuator Lens White Oval Lens
Legend Bucket and Padlock
Illumination Bottom LED Red UP
Sealing IP66, No Panel Gasket
Pack Unit EACH
Manufacturer Carling Technologies
Price 15.69
