Locking Switch Double Pole On -None Off, Red Slot Lens, Lock Legend ,Red Led 24VDC Spade Terminals

(VAB1HWVB-APENU-1)
£14.03
163 In stock
SKU
9143265

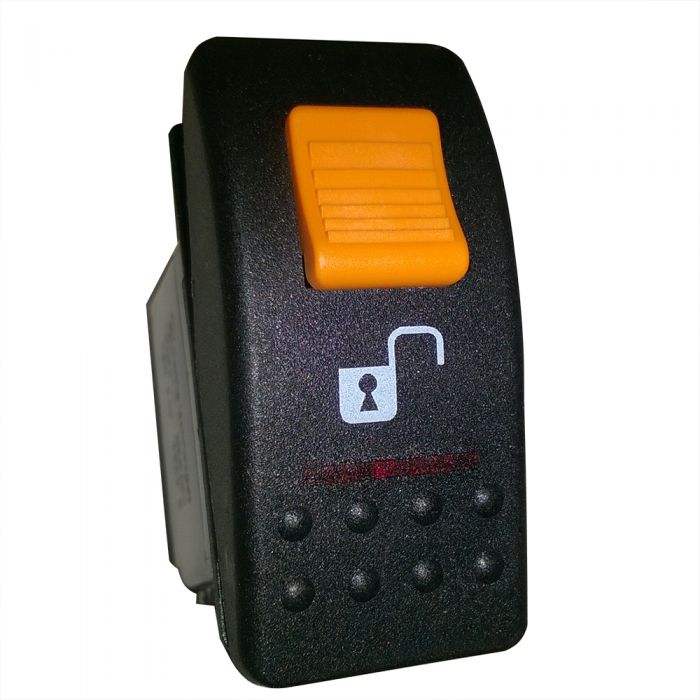

Switch With Actuator Double Pole On-Off, Red Slot Lens, Lock Legend Red Led 24VDC spade terminals , Orange Lock Button



**** Spade terminals and Suitable for 8 Terminal connectors ****

Locking Switch With Actuator Double Pole On-Off, Red Slot Lens, Lock Legend Red Led 24VDC spade terminals , Orange Lock Button 8 Terminal Base





When the bottom of the switch is depressed, the switch is in the locked position ,and both contacts are in the Open circuit condition. Pins 2 and 3, 5 and 6;  8(+Ve) and 7(-Ve) are the LED, independent of the switch.

When the locking mechanism is activated, the top of the switch may then be depressed, and both contacts become closed circuit.



Hole cutout 21.08x 36.83mm

More Information
Manufacturers Part Number VAB1HWVB-APENU-1
Rocker Switch Type Locking Switch
Rocker Switch Style V Series Contura II Locking
Switching Function-Circuit DP ON NONE OFF
Rating Switches 15A 24Vdc
Termination Switches 8 Way Connector
Actuator Colour and Texture Black
Texture Hard
Colour Actuator Lens Red Lock Button
Legend Unlock
Illumination Bottom LED Red Ind
Sealing IP66, No Panel Gasket
Pack Unit EACH
Manufacturer Carling Technologies
Price 14.03
