High Current Relay V23132 150A 12Vdc Sealed

A high performance relay capable of switching 150A or 300A with a choice of 2 contact materials .
The continuous running current is 150A with both models.Available as n/o(2 studs) or as a proper c/o(3 Studs).Waterproof versions also available.Connections to the coil are via Amp/tyco 2 way 1.5mm superseal connectors,except for the changeover versions which are via 2 6.4mm spades from the side of the case.

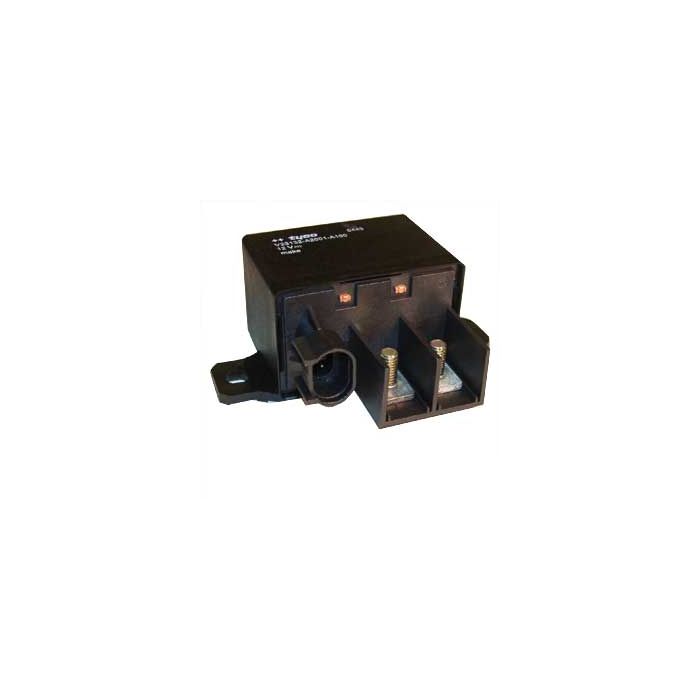

Tyco V23132 series High current relay.

Note From Feb 2012 Tyco are rationalizing the contact materials and will in future only produce the Silver tin oxide 300A material.There is no need for two verions as the AgSnO2 material can fulfil the specification of 300a and 150A types.

So relays with suffix A100 or B100
will be replaced by relays
with suffix A200 or B200.


V23132 A2001 B100 JCB Part no 716/30252 now use V23132 A2001 B200 stock no 4954376


V23132 B2002 B200 JCB no 716/30295
