Dual Key Bolt Interlock B Key Removable(included)
(440T-MDBLE14-AB)
£392.04
A dual key bolt interlock in a key exchange version, used as part of an interlocking system or to lock on or off electrical equipment e.g. high voltage compartments etc.
The key trapping is divided into 3 categories depending on how the keys can be removed.

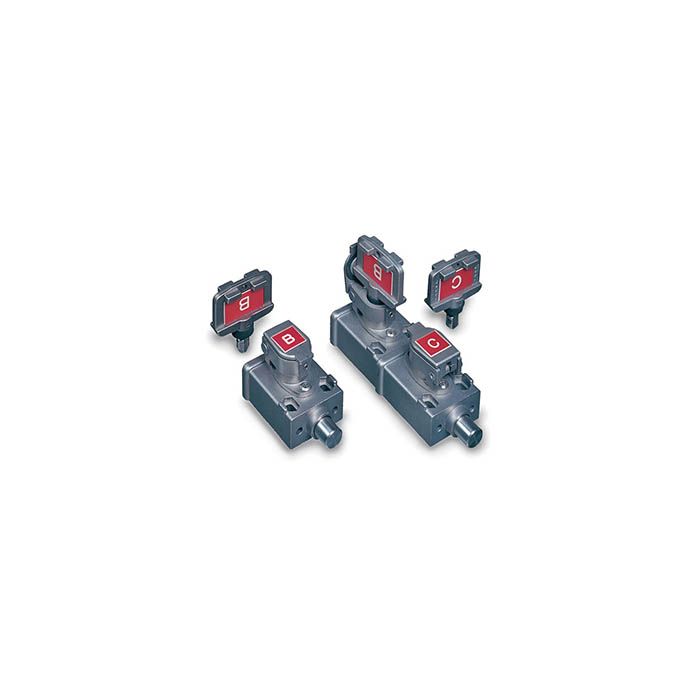

Main group picture of single access bolt and dual bolt primary B secondary C full body access .
For full body access example MDBLE14-AB shown in lower picture, the primary key A , taken from the machine isolator (MRPSE11-0A) is inserted into the lock. The secondary key B may then be removed to unlock the door and the maintenance technician keeps the B key in his pocket to prevent a restart of the machine and to prevent him being locked in the area.
For lower risk partial body access situations such as a small hatch into a machine where the technician cannot be trapped inside an area, the 440T-MDSLE10-?? could be used. In this situation the secondary key is not removable once the primary key is in place.
Featuring all stainless steel interlocking and coded parts, including coded barrel & internal components. Other key code options can be supplied upon request.
The key trapping is divided into 3 categories depending on how the keys can be removed.
Main group picture of single access bolt and dual bolt primary B secondary C full body access .
For full body access example MDBLE14-AB shown in lower picture, the primary key A , taken from the machine isolator (MRPSE11-0A) is inserted into the lock. The secondary key B may then be removed to unlock the door and the maintenance technician keeps the B key in his pocket to prevent a restart of the machine and to prevent him being locked in the area.
For lower risk partial body access situations such as a small hatch into a machine where the technician cannot be trapped inside an area, the 440T-MDSLE10-?? could be used. In this situation the secondary key is not removable once the primary key is in place.
Featuring all stainless steel interlocking and coded parts, including coded barrel & internal components. Other key code options can be supplied upon request.
Prosafe Bolt Interlock Dual key Primary key A Secondary Key B (trapped and included) Bolt Interlock Dual key Primary key A Secondary Key B (trapped and included)
| Manufacturers Part Number | 440T-MDBLE14-AB |
|---|---|
| Safety Switch Type | Trapped Key |
| Trapped Key Type | Bolt Interlock Dual Key |
| Key Code | Ab |
| Catalogue Page | Catalogue pdf, prices not current. |
| Technical Data1 | Prosafe Single and Dual Key Interlock Manual |
| Technical Data2 | Prosafe Dual Key Data Sheet |
| Pack Unit | EACH |
| Manufacturer | SIGMA CONTROLS |
| Price | 392.04 |
