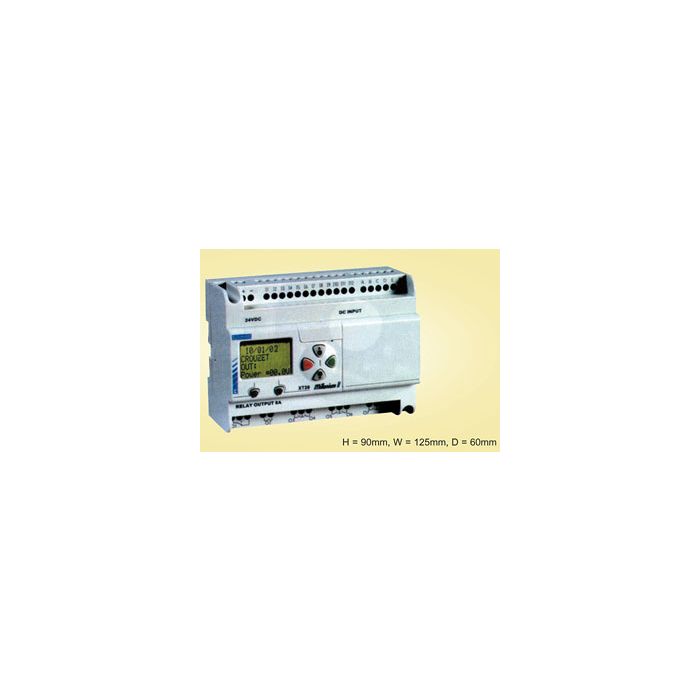

Millenium 3 20 I/O Programmable Relay 24Vdc Solid State Output

The Crouzet Millenium 3 is a programmable relay designed as an
alternative to hard wiring items such as timers, clocks and relays, but with programming software far simpler than more complex PLCs. The
unit can be programmed by simply drawing your electrical circuit
diagram on a computer screen and then downloading the connections
into the Millenium. Optional programming also by front of panel keypad.



Key Features

Logic functions - AND, OR, NAND, NOR, XOR, NOT

Timers - ON delay A / OFF delay C, impulse BW & BH, Pulse generator Li

Pulse Counter up/down

Hours & minutes counter

Analogue input 0-10V, gain adjust, compare, trigger

24hr Time clock

Relay outputs, solid state outputs (with pulse width modulation option)

EEPROM memory module for transferring data from one millenium to another.

Battery back-up of data in the event of a power failure: 10 years

DIN rail or panel mounting
