450 Series Heavy duty relay 50A
(450XAX40-24Vdc)
£35.80
The 450 series from Struthers and Dunn is a new generarion of open frame relay power relay.
Uniquely for this style of heavy duty relay featuring integrated din rail or panel mounting and optional coil led indication.
Choice of 40A or 50A contacts, optional magnetic blowouts for high dc switching, auxiliary contacts, coil led.

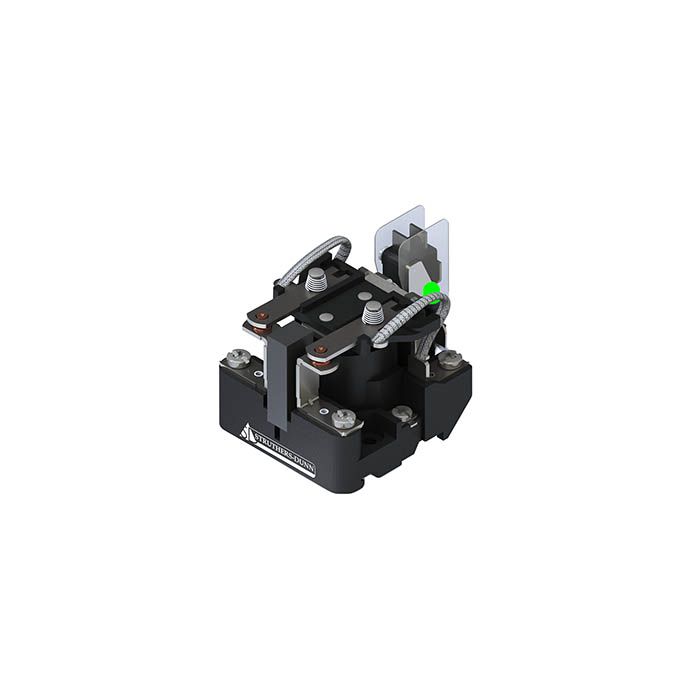

picture shows dpco version.
Uniquely for this style of heavy duty relay featuring integrated din rail or panel mounting and optional coil led indication.
Choice of 40A or 50A contacts, optional magnetic blowouts for high dc switching, auxiliary contacts, coil led.
picture shows dpco version.
Open frame relay SPCO 24vdc
| Manufacturers Part Number | 450XAX40-24Vdc |
|---|---|
| Relay Type | Heavy Duty |
| Contact Configuration | 1C/O |
| Current Rating | 50A |
| Coil or Supply Voltage | 24Vdc |
| Mounting Method | Panel Mounting |
| Switching Voltage | 500Vdc |
| Indication | LED |
| Sealing | Open Frame |
| Catalogue Page | Catalogue pdf, prices not current. |
| Technical Data1 | Struthers & Dunn 450 Data Sheet |
| Pack Unit | EACH |
| Manufacturer | Struthers and Dunn |
| Price | 35.8 |
