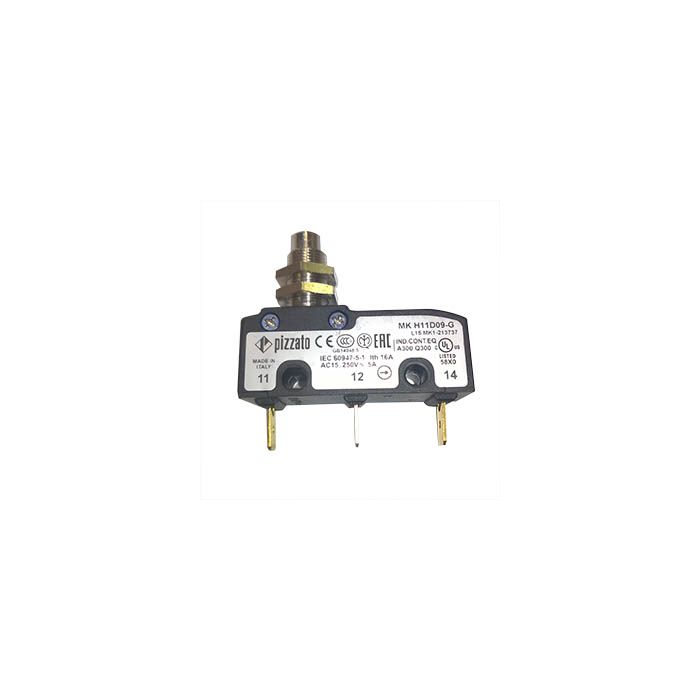

Mk Range M10 Hole Mount Microswitch Plain Plunger
(MKH11D09-G)
£15.31
100 In stock
SKU
6251005
The Mk range is a modern reincarnation of the industry standard 16A microswitch featuring many enhancements.
Options include:
1 Spade or Screw terminals.
2 Standard Silver or Gold plated contacts for low current.
3 Potential IP65 seal with cover.
4 Combined snap action safety contacts. double action increases reliability 100 fold.
5 Roller actuators can be removed and refitted at 90 deg making stock holding easier.
6 Low temperature -40 deg Option.
Options include:
1 Spade or Screw terminals.
2 Standard Silver or Gold plated contacts for low current.
3 Potential IP65 seal with cover.
4 Combined snap action safety contacts. double action increases reliability 100 fold.
5 Roller actuators can be removed and refitted at 90 deg making stock holding easier.
6 Low temperature -40 deg Option.
Microswitch Plain Plunger M10 thread 0.250" Terminals Gold flashed contact Microswitch Standard plunger M10 thread
0.250" Terminals Gold flashed contact
| Manufacturers Part Number | MKH11D09-G |
|---|---|
| Application Area | General Use |
| Limit Switch Type | Single Hole Mount M10 |
| Contact Configuration | 1N/O + 1N/C |
| Current Rating | 16A Gold Flash |
| Actuator Type | Plain Plunger |
| Sealing | IP65 |
| Housing Material | ABS |
| Connection | Faston |
| Catalogue Page | Catalogue pdf, prices not current. |
| Technical Data1 | Pizzatto MK Series Data Sheet |
| Technical Data2 | Pizzatto MK Series Contact Rating |
| Pack Unit | EACH |
| Manufacturer | PIZZATTO |
| Price | 15.31 |
