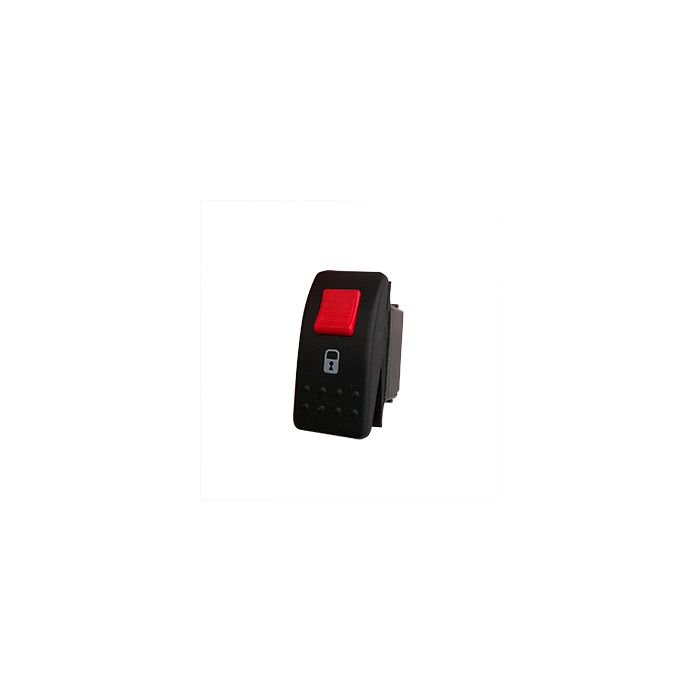

Locking Switch Single Pole Off None On, No Led 12Vdc Padlock Lock Legend

(V9D1SW0C-AZLAV1)
£9.60
129 In stock
SKU
9141202
A range of carling technologies Contura II style switches complete with actuator.This presentation is for models without illumination.

Locking Switch With Actuator SP 20A 12V HMP JB4019 RK SW SP 20A 12V HMP JB4019



When the Top of the switch is depressed, the switch is locked, and the contacts are open circuit

When the lock mechanism is activated, the bottom of the switch may then be pressed a down and the contact closes.

Hole cutout 21.08x 36.83mm

More Information
Manufacturers Part Number V9D1SW0C-AZLAV1
Rocker Switch Type Locking Switch
Rocker Switch Style V Series Contura II Locking
Switching Function-Circuit SP OFF NONE ON
Rating Switches 20A 12Vdc
Termination Switches 8 Way Connector
Actuator Colour and Texture Black
Texture Hard
Colour Actuator Lens Red Lock Button
Legend Lock
Illumination None
Sealing IP66, Panel Gasket
Catalogue Page Catalogue pdf, prices not current.
Technical Data1 Carling V Series Data Sheet
Pack Unit EACH
Manufacturer Carling Technologies
Price 9.6
