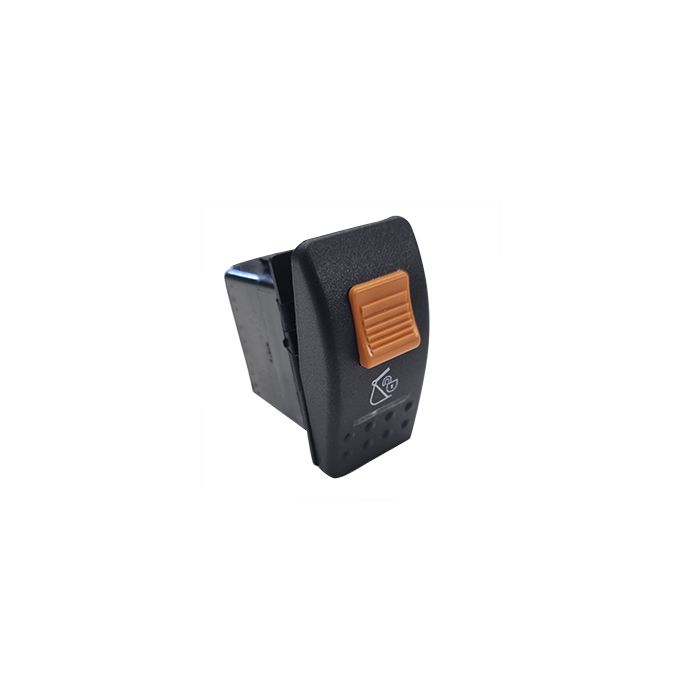

Locking Switch Double Pole, On-None-Off, Special Dual Colour LED 2Vdc

(VAB4XWXB-A3EXX-1XPN4)
£14.07
275 In stock
SKU
9141372

Switch With Actuator Double Pole, ON-OFF, Marked rating 24VDC 15A, Clear Slot Lens, Orange Lock Button

Special Version;LED'S do not have bias resistors, allowing user control, cannot be connected directly to vehicle supply voltage



Bi-Colour LED details:

One Led in position 2 , 2Vdc Bi-Colour Red/Green with NO BIAS resistor.

Led to be biased at 10mA from users own control system.

Red    part Independent, lit from T8 (+ve) to T7(-ve)

Green part Independent, lit from T1 (+ve) to T7(-ve)

Locking Switch Double Pole, ON-OFF, Contact rating /marking 24VDC 15A, Clear Slot Lens,orange Lock Button, Bucket symbol

***2V LED Bi Colour Green/Red *** RCV-37133979

More Information
Manufacturers Part Number VAB4XWXB-A3EXX-1XPN4
Rocker Switch Type Locking Switch
Rocker Switch Style V Series Contura II Locking
Switching Function-Circuit DP ON NONE OFF
Rating Switches 15A 24Vdc LED 2Vdc
Termination Switches Solder
Actuator Colour and Texture Black
Texture Hard
Colour Actuator Lens Orange Lock Button
Legend Bucket and Padlock
Illumination Bottom LED Dual Red Green
Sealing IP66, No Panel Gasket
Pack Unit EACH
Manufacturer Carling Technologies
Price 14.07
