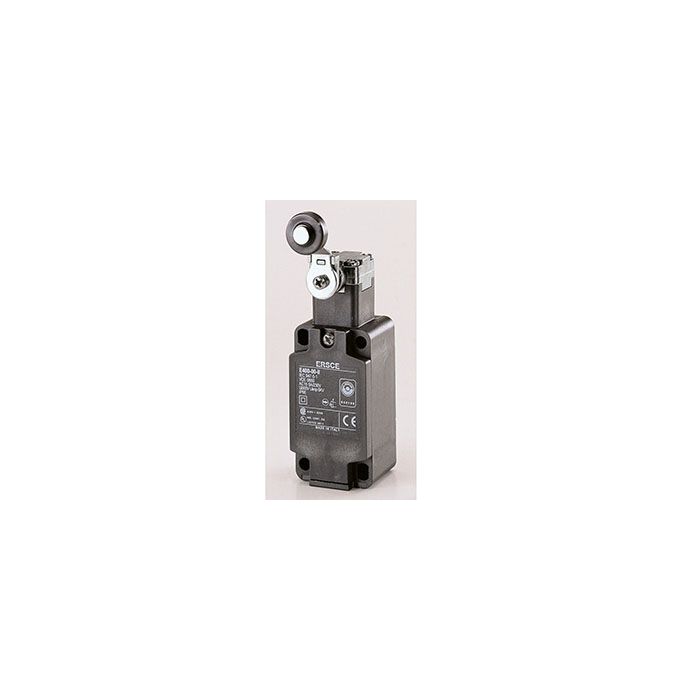

Offset Roller Lever Limit Switch E400
(E401-00-IM)
£30.01
2 In stock
SKU
9711214
The E400 series is a very robust limit switch designed to meet standard EN50041 , with 4 fixing holes on 30mm centres. Available with metal or plastic body and with various contacts arrangements and conduit entries.
The standard 1N/C & 1N/O contact is unique in combining the positive safety action with snap action in one block extending contact life. Bremas Esrce branded product.
Actuator head available with inline or offset roller, both heads are four position adjustable
Note crouzet 83 861 series which was manufactured by Ersce for Crouzet will be supplied as Ersce branded product once stocks exhausted.
PRODUCT AVAILABLE IN STANDARD LEVER em OR WITH AN OFFSET ROLLER im TYPES.
The standard 1N/C & 1N/O contact is unique in combining the positive safety action with snap action in one block extending contact life. Bremas Esrce branded product.
Actuator head available with inline or offset roller, both heads are four position adjustable
Note crouzet 83 861 series which was manufactured by Ersce for Crouzet will be supplied as Ersce branded product once stocks exhausted.
PRODUCT AVAILABLE IN STANDARD LEVER em OR WITH AN OFFSET ROLLER im TYPES.
LIMIT SWITCH LARGE OFFSET ROLLER LEVER1 N/O & 1 N/C SNAP ACTION SAFETY METAL BODY M20
| Manufacturers Part Number | E401-00-IM |
|---|---|
| Application Area | General Use |
| Limit Switch Type | EN50041 4 Fixing Holes 30mmx60mm |
| Contact Configuration | 1N/O + 1N/C Snap Action Safety |
| Current Rating | 10A |
| Actuator Type | Roller Lever Offset |
| Sealing | IP66 |
| Housing Material | Metal Body , Metal Head |
| Connection | M20 |
| Catalogue Page | Catalogue pdf, prices not current. |
| Technical Data1 | Ersce E400 Inline Roller Data Sheet p306 |
| Technical Data2 | Ersce E400 Offset Roller Data Sheet p310 |
| Pack Unit | EACH |
| Manufacturer | BREMAS ERSCE |
| Price | 30.01 |
