Auxiliary Actuators & Insulating Sheets
(VLR1)
£4.50
29 In stock
SKU
2193211

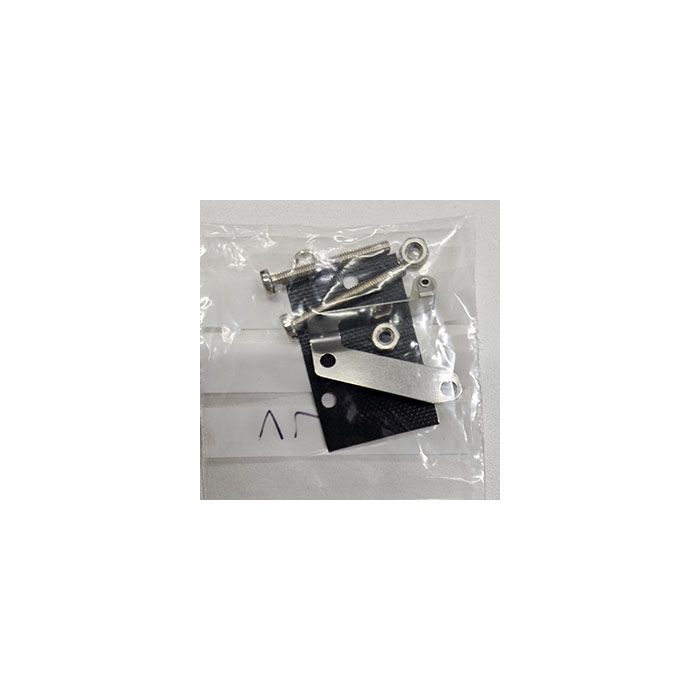

A range of four different auxiliary actuators for V3 style switches
comprising of standard plain lever, standard lever with a free running
roller, short plain flexing leaf lever or short flexing leaf with roller. All are supplied with frame to fit one switch, an insulating sheet and two M3 x 25mm screws with washers and nuts. Use the screws both to mount the frame to the switch and to mount the complete assembly to the application. Suitable for plunger actuated V3 style switches.
comprising of standard plain lever, standard lever with a free running
roller, short plain flexing leaf lever or short flexing leaf with roller. All are supplied with frame to fit one switch, an insulating sheet and two M3 x 25mm screws with washers and nuts. Use the screws both to mount the frame to the switch and to mount the complete assembly to the application. Suitable for plunger actuated V3 style switches.
FLEXING LEAF ROL ACT 20.6mm FOR V3 STYLE SW
| Manufacturers Part Number | VLR1 |
|---|---|
| Microswitch Type | Auxiliary Actuator Bolt On |
| Connection | N/R |
| Lever Type/Length | Roller 20.2mm |
| Operating Force | Standard |
| Contact Configuration | N/R |
| Sealing | N/R |
| Catalogue Page | Catalogue pdf, prices not current. |
| Technical Data1 | Essen HL13 Data Sheet |
| Technical Data2 | HR13 (2var1) Actuator Data Sheet |
| Pack Unit | EACH |
| Manufacturer | SAIA BURGESS JOHNSON ELECTRIC |
| Price | 4.5 |
