Auxiliary Actuators & Insulating Sheets
(N15315)
£0.25
400 In stock
SKU
2192164
A range of four different auxiliary actuators for V3 style switches
comprising of standard plain lever, standard lever with a free running
roller, short plain flexing leaf lever or short flexing leaf with roller. All are supplied with frame to fit one switch, an insulating sheet and two M3 x 25mm screws with washers and nuts. Use the screws both to mount the frame to the switch and to mount the complete assembly to the application. Suitable for plunger actuated V3 style switches.
comprising of standard plain lever, standard lever with a free running
roller, short plain flexing leaf lever or short flexing leaf with roller. All are supplied with frame to fit one switch, an insulating sheet and two M3 x 25mm screws with washers and nuts. Use the screws both to mount the frame to the switch and to mount the complete assembly to the application. Suitable for plunger actuated V3 style switches.

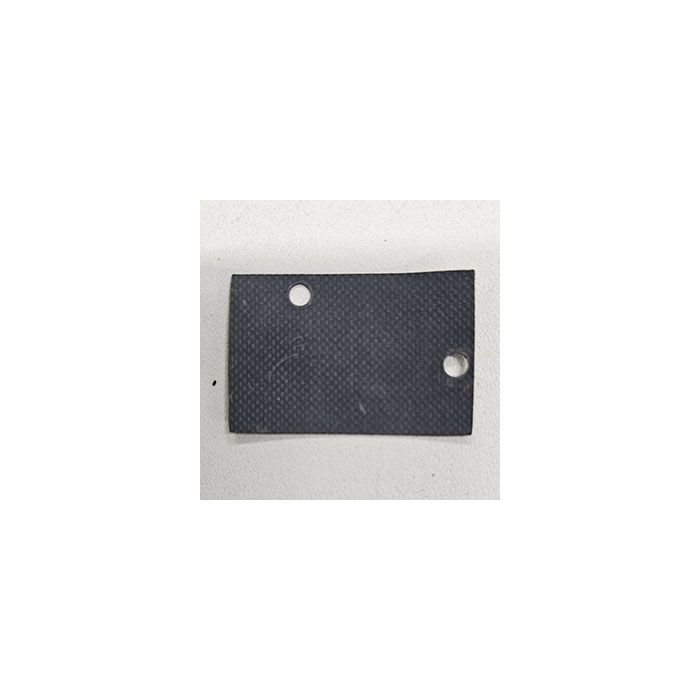

FLEX INS SHEET FOR V3S/V37/V3S FLEX INS SHEET FOR V3S/V37/V3S
| Manufacturers Part Number | N15315 |
|---|---|
| Microswitch Type | Accessory |
| Connection | N/R |
| Lever Type/Length | N/R |
| Operating Force | N/R |
| Contact Configuration | N/R |
| Sealing | N/R |
| Catalogue Page | Catalogue pdf, prices not current. |
| Technical Data1 | Essen HL13 Data Sheet |
| Technical Data2 | HR13 (2var1) Actuator Data Sheet |
| Pack Unit | EACH |
| Manufacturer | SAIA BURGESS JOHNSON ELECTRIC |
| Price | 0.25 |
