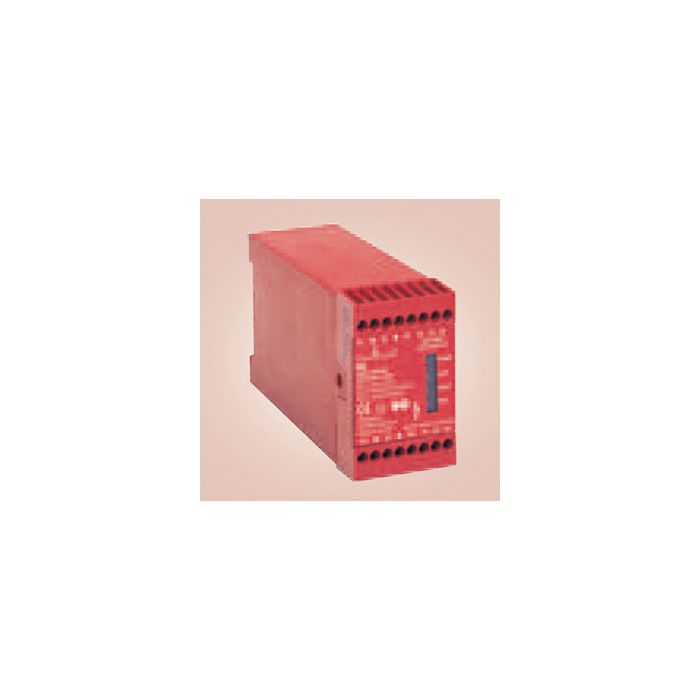

Failsafe Timing Relay 'CU3'
(440R-S35003)
£822.65
Legacy product, due for obsolescence April 2016
The CU3 is a timing and stop motion detector unit which detects motion
of single or three phase motors by measuring the back electromagnetic
field (emf) of the motor. When the level of emf reaches the set value, a signal is sent to the guard locking switch allowing the guard to opened. Incorporates a variable resistor which is adjustable to alter the unit's sensitivity. Available in three voltage versions.
The CU3 is a timing and stop motion detector unit which detects motion
of single or three phase motors by measuring the back electromagnetic
field (emf) of the motor. When the level of emf reaches the set value, a signal is sent to the guard locking switch allowing the guard to opened. Incorporates a variable resistor which is adjustable to alter the unit's sensitivity. Available in three voltage versions.
CU3 230V, 2 N/C CU3 230V, 2 N/C
| Manufacturers Part Number | 440R-S35003 |
|---|---|
| Coil or Supply Voltage | 230Vac |
| Function | Speed/Rundown |
| Contact Configuration | 2N/O + 1N/C |
| Connection | Screw Terminals |
| Reset Type | N/R |
| Width | 45mm |
| Channels | N/R |
| Catalogue Page | Catalogue pdf, prices not current. |
| Technical Data1 | Guardmaster CU3 Manual |
| Pack Unit | EACH |
| Manufacturer | GUARDMASTER |
| Price | 822.65 |
