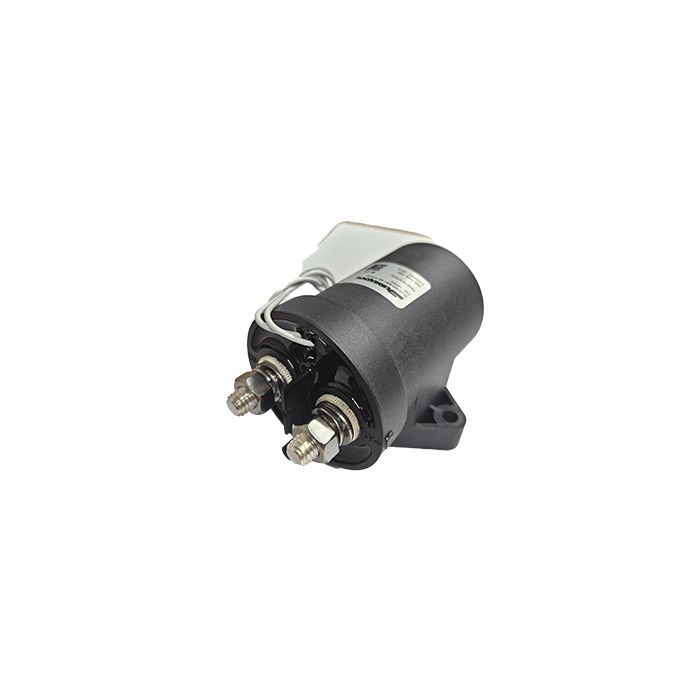

Contactor DC Side Mount 400A at 120Vdc SPST-NO M8 Stud 12Vdc Flying Leads 390mm
(DLVC400-4061-S8-1012-R1)
£64.79
5 In stock
SKU
7320090
Sealed DC Contactor rated to 400A at 80Vdc
500A possible with greater than 300m2 conductors
68.3mm hole centres
Contactor DC 400A at 80Vdc SPST-NO M8 Stud 12Vdc Flying Leads 390mm 400A , 500A with greater 300m2 conductors 68.3mm hole centres
Side Mount
| Manufacturers Part Number | DLVC400-4061-S8-1012-R1 |
|---|---|
| DC Contactor Type | Standard |
| Coil or Supply Voltage | 12Vdc |
| Current Rating | 400A |
| Contact Configuration | 1N/O |
| Sealing | IP67 |
| Housing Material | ABS |
| Mounting Method | Flange Side Mounting |
| Switching Voltage | 110Vdc |
| Coil Supression | None |
| Connection | Flying lead 390mm |
| Technical Data1 | Durakool DLVC400 data sheet |
| Pack Unit | EACH |
| Manufacturer | DURAKOOL RELAYS |
| Price | 64.79 |
