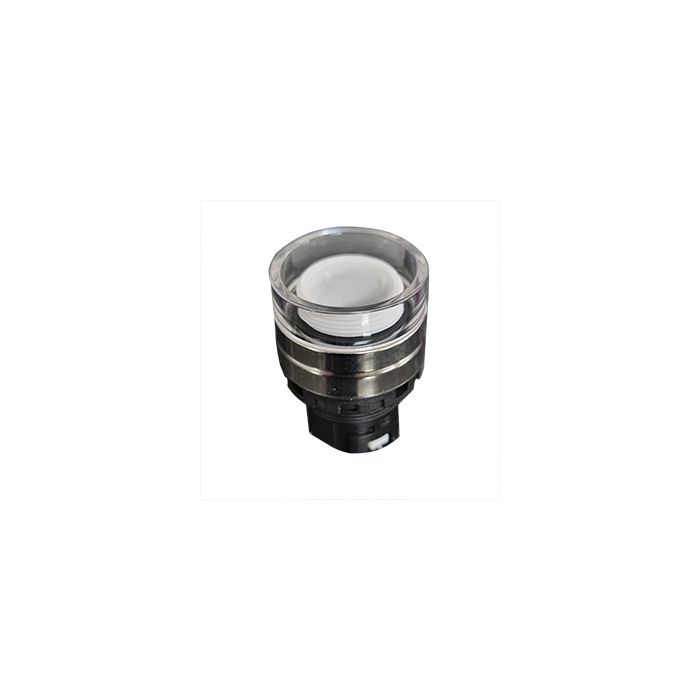

22mm maintained operator Metal Finsh bezel - with shroud - for illuminated switch assemblies

22mm maintained operator Metal Finsh bezel - with shroud - for illuminated switch assemblies

To make an illuminated switch you will need the following items to make a complete switch:

1 Shrouded Illuminable Operator YW4L-type (suffix AF00 Maintained, MF00 Momentary)

2 Contact Carrier YW-CN-N

3 Contact Blocks such as YW-E10 (N/O) or YW-E01 (N/C) with Screw Terminals or Pushin if prefer.

4 LED Holder YW-DE with Screw Terminals or Pushin if prefer

5 LED-White ,of required voltage e.g 24Vdc LSED-2PW

6 LED Diffuser YW9Z-P12 to create even spread of light, may also be used for silk screening of text.

7 Lens of desired colour and profile.e.g

Illuminated Extended Lens YW9Z-L12*colour
