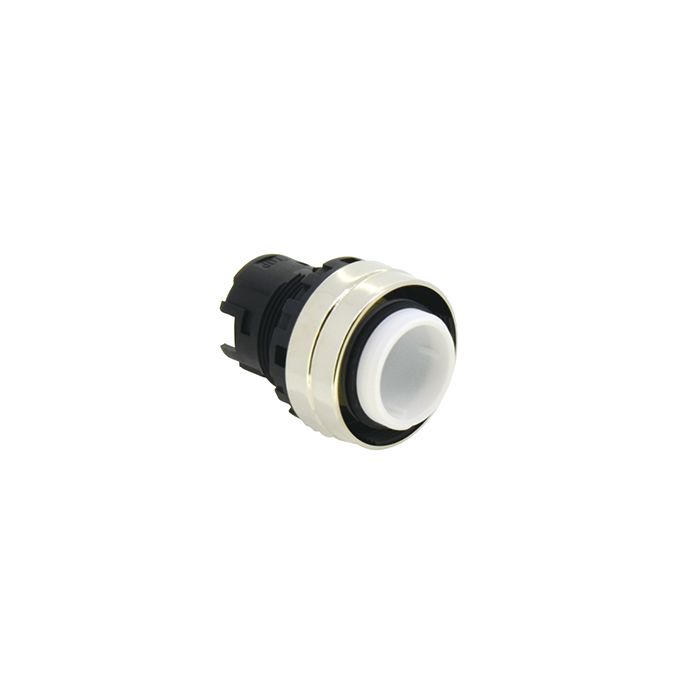

22mm maintained operator Metal Finsh bezel -for illuminated switch assemblies

22mm maintained operator Metal Finsh bezel -for illuminated switch assemblies

To make an illuminated switch you will need the following items to make a complete switch:

1 Illuminable Operator YW4B-type (suffix A00 Maintained, M00 Momentary)

2 Contact Carrier YW-CN-N

3 Contact Blocks such as YW-E10 (N/O) or YW-E01 (N/C) with Screw Terminals or Pushin if prefer.

4 LED Holder YW-DE with Screw Terminals or Pushin if prefer

5 LED-White ,of required voltage e.g 24Vdc LSED-2PW

6 LED Diffuser YW9Z-P12 to create even spread of light, may also be used for silk screening of text.

7 Lens of desired colour and profile.e.g

Illuminated Extended Lens YW9Z-L12*colour

or

Illuminated 40mm Mushroom Head Lens; YW9Z-L14*colour

Illuminable Operators may also be used to make Non illuminated Extended Pushbuttons or 40mm Mushroom Head Buttons.

You will need the following items to make a complete switch:

1 Illuminable Operator YW4B-type (suffix A00 Maintained, M00 Momentary).

2 Contact Carrier YW-CN-N

3 Contact Blocks such as YW-E10 (N/O) or YW-E01 (N/C) with Screw Terminals or Pushin if prefer.

4 Button of desired colour and profile.e.g

Button Extended YW9Z-B12*colour

or

40mm Mushroom Head Button; YW9Z-B14*colour
