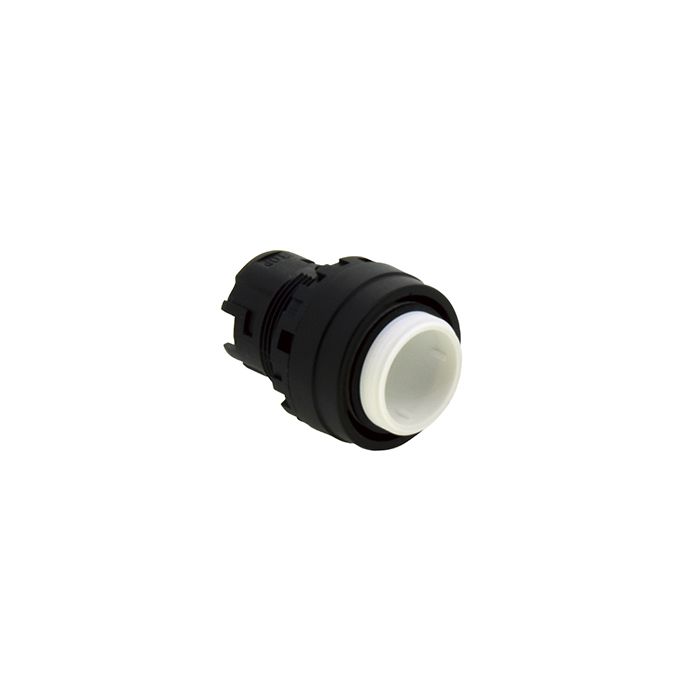

22mm maintained operator Black bezel -for illuminated switch assemblies
22mm maintained operator Black bezel for illuminated switch assemblies
To make an illuminated switch you will need the following items to make a complete switch:
1 Illuminable Operator YW1B-type (suffix A00 Maintained, M00 Momentary)
2 Contact Carrier YW-CN-N
3 Contact Blocks such as YW-E10 (N/O) or YW-E01 (N/C) with Screw Terminals or Pushin if prefer.
4 LED Holder YW-DE with Screw Terminals or Pushin if prefer
5 LED-White ,of required voltage e.g 24Vdc LSED-2PW
6 LED Diffuser YW9Z-P12 to create even spread of light, may also be used for silk screening of text.
7 Lens of desired colour and profile.e.g
Illuminated Extended Lens YW9Z-L12*colour
or
Illuminated 40mm Mushroom Head Lens; YW9Z-L14*colour
Illuminable Operators may also be used to make Non illuminated Extended Pushbuttons or 40mm Mushroom Head Buttons.
You will need the following items to make a complete switch:
1 Illuminable Operator YW1B-type (suffix A00 Maintained, M00 Momentary).
2 Contact Carrier YW-CN-N
3 Contact Blocks such as YW-E10 (N/O) or YW-E01 (N/C) with Screw Terminals or Pushin if prefer.
4 Button of desired colour and profile.e.g
Button Extended YW9Z-B12*colour
or
40mm Mushroom Head Button; YW9Z-B14*colour
Manufacturers Part Number | YW1B-A00 |
---|---|
Push Button Type | 22.5mm IDEC YW Series |
Head Style | Maintained Operator Illuminable |
Indication | Illuminable (LED Not Included) |
Actuator Colour and Texture | Black Bezel No Lens |
Sealing | IP65 |
Pack Unit | EACH |
Manufacturer | IDEC |
Price | 4.49 |
